ShardingSphere 4.x -Sharding-JDBC-Configuration manual-Spring namespace configuration

Notice

Inline expression identifier can can use ${...} or $->{...}, but the former one clashes with the placeholder in property documents of Spring, so it is suggested to use $->{...} for inline expression identifier under Spring environment.

Example

example: shardingsphere-example

Sharding

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:sharding="http://shardingsphere.apache.org/schema/shardingsphere/sharding"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://shardingsphere.apache.org/schema/shardingsphere/sharding
http://shardingsphere.apache.org/schema/shardingsphere/sharding/sharding.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd">
<context:annotation-config />
<bean id="entityManagerFactory" class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean">
<property name="dataSource" ref="shardingDataSource" />
<property name="jpaVendorAdapter">
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter" p:database="MYSQL" />
</property>
<property name="packagesToScan" value="org.apache.shardingsphere.example.core.jpa.entity" />
<property name="jpaProperties">
<props>
<prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop>
<prop key="hibernate.hbm2ddl.auto">create</prop>
<prop key="hibernate.show_sql">true</prop>
</props>
</property>
</bean>
<bean id="transactionManager" class="org.springframework.orm.jpa.JpaTransactionManager" p:entityManagerFactory-ref="entityManagerFactory" />
<tx:annotation-driven />
<bean id="ds0" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds0" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<bean id="ds1" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds1" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<bean id="preciseModuloDatabaseShardingAlgorithm" class="org.apache.shardingsphere.example.algorithm.PreciseModuloShardingDatabaseAlgorithm" />
<bean id="preciseModuloTableShardingAlgorithm" class="org.apache.shardingsphere.example.algorithm.PreciseModuloShardingTableAlgorithm" />
<sharding:standard-strategy id="databaseShardingStrategy" sharding-column="user_id" precise-algorithm-ref="preciseModuloDatabaseShardingAlgorithm" />
<sharding:standard-strategy id="tableShardingStrategy" sharding-column="order_id" precise-algorithm-ref="preciseModuloTableShardingAlgorithm" />
<sharding:key-generator id="orderKeyGenerator" type="SNOWFLAKE" column="order_id" />
<sharding:key-generator id="itemKeyGenerator" type="SNOWFLAKE" column="order_item_id" />
<sharding:data-source id="shardingDataSource">
<sharding:sharding-rule data-source-names="ds0,ds1">
<sharding:table-rules>
<sharding:table-rule logic-table="t_order" actual-data-nodes="ds$->{0..1}.t_order$->{0..1}" database-strategy-ref="databaseShardingStrategy" table-strategy-ref="tableShardingStrategy" key-generator-ref="orderKeyGenerator" />
<sharding:table-rule logic-table="t_order_item" actual-data-nodes="ds$->{0..1}.t_order_item$->{0..1}" database-strategy-ref="databaseShardingStrategy" table-strategy-ref="tableShardingStrategy" key-generator-ref="itemKeyGenerator" />
</sharding:table-rules>
<sharding:binding-table-rules>
<sharding:binding-table-rule logic-tables="t_order, t_order_item" />
</sharding:binding-table-rules>
<sharding:broadcast-table-rules>
<sharding:broadcast-table-rule table="t_config" />
</sharding:broadcast-table-rules>
</sharding:sharding-rule>
</sharding:data-source>
</beans>

Read-Write Split

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:master-slave="http://shardingsphere.apache.org/schema/shardingsphere/masterslave"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd
http://shardingsphere.apache.org/schema/shardingsphere/masterslave
http://shardingsphere.apache.org/schema/shardingsphere/masterslave/master-slave.xsd">
<context:annotation-config />
<context:component-scan base-package="org.apache.shardingsphere.example.core.jpa" />
<bean id="entityManagerFactory" class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean">
<property name="dataSource" ref="masterSlaveDataSource" />
<property name="jpaVendorAdapter">
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter" p:database="MYSQL" />
</property>
<property name="packagesToScan" value="org.apache.shardingsphere.example.core.jpa.entity" />
<property name="jpaProperties">
<props>
<prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop>
<prop key="hibernate.hbm2ddl.auto">create</prop>
<prop key="hibernate.show_sql">true</prop>
</props>
</property>
</bean>
<bean id="transactionManager" class="org.springframework.orm.jpa.JpaTransactionManager" p:entityManagerFactory-ref="entityManagerFactory" />
<tx:annotation-driven />
<bean id="ds_master" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds_master" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<bean id="ds_slave0" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds_slave0" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<bean id="ds_slave1" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds_slave1" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<!-- 4.0.0-RC1 version load balance algorithm configuration -->
<!-- <bean id="randomStrategy" class="org.apache.shardingsphere.example.spring.namespace.algorithm.masterslave.RandomMasterSlaveLoadBalanceAlgorithm" /> -->
<!-- 4.0.0-RC2 and later version load balance algorithm configuration -->
<master-slave:load-balance-algorithm id="randomStrategy" type="RANDOM" />
<master-slave:data-source id="masterSlaveDataSource" master-data-source-name="ds_master" slave-data-source-names="ds_slave0, ds_slave1" strategy-ref="randomStrategy">
<master-slave:props>
<prop key="sql.show">true</prop>
<prop key="executor.size">10</prop>
<prop key="foo">bar</prop>
</master-slave:props>
</master-slave:data-source>
</beans>

Data Masking

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:encrypt="http://shardingsphere.apache.org/schema/shardingsphere/encrypt"
xmlns:bean="http://www.springframework.org/schema/util"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://shardingsphere.apache.org/schema/shardingsphere/encrypt
http://shardingsphere.apache.org/schema/shardingsphere/encrypt/encrypt.xsd
http://www.springframework.org/schema/util
http://www.springframework.org/schema/util/spring-util.xsd">

<bean id="ds" class="com.zaxxer.hikari.HikariDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/demo_ds?useSSL=false&amp;useUnicode=true&amp;characterEncoding=UTF-8"/>
<property name="username" value="root"/>
<property name="password" value=""/>
</bean>

<bean:properties id="props">
<prop key="aes.key.value">123456</prop>
</bean:properties>

<encrypt:data-source id="encryptDataSource" data-source-name="ds" >
<encrypt:encrypt-rule>
<encrypt:tables>
<encrypt:table name="t_order">
<encrypt:column logic-column="user_id" plain-column="user_decrypt" cipher-column="user_encrypt" assisted-query-column="user_assisted" encryptor-ref="encryptor_aes" />
<encrypt:column logic-column="order_id" plain-column="order_decrypt" cipher-column="order_encrypt" assisted-query-column="order_assisted" encryptor-ref="encryptor_md5"/>
</encrypt:table>
</encrypt:tables>
<encrypt:encryptors>
<encrypt:encryptor id="encryptor_aes" type="AES" props-ref="props"/>
<encrypt:encryptor id="encryptor_md5" type="MD5" />
</encrypt:encryptors>
</encrypt:encrypt-rule>

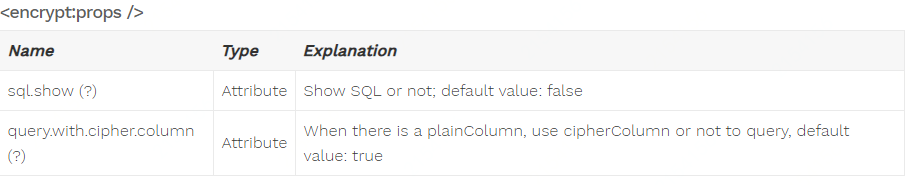

<encrypt:props>
<prop key="sql.show">true</prop>
<prop key="query.with.cipher.column">true</prop>
</encrypt:props>
</encrypt:data-source>
</beans>

Sharding + Read-write splitting

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:sharding="http://shardingsphere.apache.org/schema/shardingsphere/sharding"
xmlns:master-slave="http://shardingsphere.apache.org/schema/shardingsphere/masterslave"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd
http://shardingsphere.apache.org/schema/shardingsphere/sharding
http://shardingsphere.apache.org/schema/shardingsphere/sharding/sharding.xsd
http://shardingsphere.apache.org/schema/shardingsphere/masterslave
http://shardingsphere.apache.org/schema/shardingsphere/masterslave/master-slave.xsd">
<context:annotation-config />
<context:component-scan base-package="org.apache.shardingsphere.example.core.jpa" />
<bean id="entityManagerFactory" class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean">
<property name="dataSource" ref="shardingDataSource" />
<property name="jpaVendorAdapter">
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter" p:database="MYSQL" />
</property>
<property name="packagesToScan" value="org.apache.shardingsphere.example.core.jpa.entity" />
<property name="jpaProperties">
<props>
<prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop>
<prop key="hibernate.hbm2ddl.auto">create</prop>
<prop key="hibernate.show_sql">true</prop>
</props>
</property>
</bean>
<bean id="transactionManager" class="org.springframework.orm.jpa.JpaTransactionManager" p:entityManagerFactory-ref="entityManagerFactory" />
<tx:annotation-driven />
<bean id="ds_master0" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds_master0" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<bean id="ds_master0_slave0" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds_master0_slave0" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<bean id="ds_master0_slave1" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds_master0_slave1" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<bean id="ds_master1" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds_master1" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<bean id="ds_master1_slave0" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds_master1_slave0" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<bean id="ds_master1_slave1" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver" />
<property name="url" value="jdbc:mysql://localhost:3306/ds_master1_slave1" />
<property name="username" value="root" />
<property name="password" value="" />
</bean>
<!-- 4.0.0-RC1 version load balance algorithm configuration -->
<!-- <bean id="randomStrategy" class="org.apache.shardingsphere.example.spring.namespace.algorithm.masterslave.RandomMasterSlaveLoadBalanceAlgorithm" /> -->
<!-- 4.0.0-RC2 and later version load balance algorithm configuration -->
<master-slave:load-balance-algorithm id="randomStrategy" type="RANDOM" />
<sharding:inline-strategy id="databaseStrategy" sharding-column="user_id" algorithm-expression="ds_ms$->{user_id % 2}" />
<sharding:inline-strategy id="orderTableStrategy" sharding-column="order_id" algorithm-expression="t_order$->{order_id % 2}" />
<sharding:inline-strategy id="orderItemTableStrategy" sharding-column="order_id" algorithm-expression="t_order_item$->{order_id % 2}" />
<sharding:key-generator id="orderKeyGenerator" type="SNOWFLAKE" column="order_id" />
<sharding:key-generator id="itemKeyGenerator" type="SNOWFLAKE" column="order_item_id" />
<sharding:data-source id="shardingDataSource">
<sharding:sharding-rule data-source-names="ds_master0,ds_master0_slave0,ds_master0_slave1,ds_master1,ds_master1_slave0,ds_master1_slave1">
<sharding:master-slave-rules>
<sharding:master-slave-rule id="ds_ms0" master-data-source-name="ds_master0" slave-data-source-names="ds_master0_slave0, ds_master0_slave1" strategy-ref="randomStrategy" />
<sharding:master-slave-rule id="ds_ms1" master-data-source-name="ds_master1" slave-data-source-names="ds_master1_slave0, ds_master1_slave1" strategy-ref="randomStrategy" />
</sharding:master-slave-rules>
<sharding:table-rules>
<sharding:table-rule logic-table="t_order" actual-data-nodes="ds_ms$->{0..1}.t_order$->{0..1}" database-strategy-ref="databaseStrategy" table-strategy-ref="orderTableStrategy" key-generator-ref="orderKeyGenerator" />
<sharding:table-rule logic-table="t_order_item" actual-data-nodes="ds_ms$->{0..1}.t_order_item$->{0..1}" database-strategy-ref="databaseStrategy" table-strategy-ref="orderItemTableStrategy" key-generator-ref="itemKeyGenerator" />
</sharding:table-rules>
<sharding:binding-table-rules>
<sharding:binding-table-rule logic-tables="t_order, t_order_item" />
</sharding:binding-table-rules>
<sharding:broadcast-table-rules>
<sharding:broadcast-table-rule table="t_config" />
</sharding:broadcast-table-rules>
</sharding:sharding-rule>
</sharding:data-source>
</beans>

Sharding + Data Masking

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:encrypt="http://shardingsphere.apache.org/schema/shardingsphere/encrypt"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:bean="http://www.springframework.org/schema/util"
xmlns:sharding="http://shardingsphere.apache.org/schema/shardingsphere/sharding"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://shardingsphere.apache.org/schema/shardingsphere/sharding
http://shardingsphere.apache.org/schema/shardingsphere/sharding/sharding.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd
http://shardingsphere.apache.org/schema/shardingsphere/encrypt
http://shardingsphere.apache.org/schema/shardingsphere/encrypt/encrypt.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util.xsd">
<import resource="classpath:META-INF/shardingTransaction.xml"/>
<context:annotation-config />
<context:component-scan base-package="org.apache.shardingsphere.example.core.jpa"/>
<bean id="entityManagerFactory" class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean">
<property name="dataSource" ref="shardingDataSource" />
<property name="jpaVendorAdapter">
<bean class="org.springframework.orm.jpa.vendor.HibernateJpaVendorAdapter" p:database="MYSQL" />
</property>
<property name="packagesToScan" value="org.apache.shardingsphere.example.core.jpa.entity" />
<property name="jpaProperties">
<props>
<prop key="hibernate.dialect">org.hibernate.dialect.MySQLDialect</prop>
<prop key="hibernate.hbm2ddl.auto">create-drop</prop>
<prop key="hibernate.show_sql">true</prop>
</props>
</property>
</bean>
<bean id="transactionManager" class="org.springframework.orm.jpa.JpaTransactionManager" p:entityManagerFactory-ref="entityManagerFactory" />
<tx:annotation-driven />
<bean id="demo_ds_0" class="com.zaxxer.hikari.HikariDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/demo_ds_0"/>
<property name="username" value="root"/>
<property name="password" value=""/>
<property name="maximumPoolSize" value="16"/>
</bean>

<bean id="demo_ds_1" class="com.zaxxer.hikari.HikariDataSource" destroy-method="close">
<property name="driverClassName" value="com.mysql.jdbc.Driver"/>
<property name="jdbcUrl" value="jdbc:mysql://localhost:3306/demo_ds_1"/>
<property name="username" value="root"/>
<property name="password" value=""/>
<property name="maximumPoolSize" value="16"/>
</bean>
<sharding:inline-strategy id="databaseStrategy" sharding-column="user_id" algorithm-expression="demo_ds_${user_id % 2}" />
<sharding:inline-strategy id="orderTableStrategy" sharding-column="order_id" algorithm-expression="t_order_${order_id % 2}" />
<sharding:inline-strategy id="orderItemTableStrategy" sharding-column="order_id" algorithm-expression="t_order_item_${order_id % 2}" />
<sharding:inline-strategy id="orderEncryptTableStrategy" sharding-column="order_id" algorithm-expression="t_order_encrypt_${order_id % 2}" />
<sharding:key-generator id="orderKeyGenerator" type="SNOWFLAKE" column="order_id" />
<sharding:key-generator id="itemKeyGenerator" type="SNOWFLAKE" column="order_item_id" />
<bean:properties id="dataProtectorProps">
<prop key="appToken">business</prop>
</bean:properties>
<sharding:data-source id="shardingDataSource">
<sharding:sharding-rule data-source-names="demo_ds_0, demo_ds_1">
<sharding:table-rules>
<sharding:table-rule logic-table="t_order" actual-data-nodes="demo_ds_${0..1}.t_order_${0..1}" database-strategy-ref="databaseStrategy" table-strategy-ref="orderTableStrategy" key-generator-ref="orderKeyGenerator" />
<sharding:table-rule logic-table="t_order_item" actual-data-nodes="demo_ds_${0..1}.t_order_item_${0..1}" database-strategy-ref="databaseStrategy" table-strategy-ref="orderItemTableStrategy" key-generator-ref="itemKeyGenerator" />
</sharding:table-rules>
<sharding:encrypt-rule>
<encrypt:tables>
<encrypt:table name="t_order">
<encrypt:column logic-column="user_id" plain-column="user_decrypt" cipher-column="user_encrypt" assisted-query-column="user_assisted" encryptor-ref="encryptor_aes" />
<encrypt:column logic-column="order_id" plain-column="order_decrypt" cipher-column="order_encrypt" assisted-query-column="order_assisted" encryptor-ref="encryptor_md5"/>
</encrypt:table>
</encrypt:tables>
<encrypt:encryptors>
<encrypt:encryptor id="encryptor_aes" type="AES" props-ref="props"/>
<encrypt:encryptor id="encryptor_md5" type="MD5" />
</encrypt:encryptors>
</sharding:encrypt-rule>
</sharding:sharding-rule> <sharding:props>
<prop key="sql.show">true</prop>
</sharding:props>
</sharding:data-source>
<bean:properties id="props">
<prop key="aes.key.value">123456</prop>
</bean:properties>
</beans>

Orchestration

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:sharding="http://shardingsphere.apache.org/schema/shardingsphere/orchestration/sharding"
xmlns:master-slave="http://shardingsphere.apache.org/schema/shardingsphere/orchestration/masterslave"
xmlns:reg="http://shardingsphere.apache.org/schema/shardingsphere/orchestration/reg"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://shardingsphere.apache.org/schema/shardingsphere/orchestration/reg
http://shardingsphere.apache.org/schema/shardingsphere/orchestration/reg/reg.xsd
http://shardingsphere.apache.org/schema/shardingsphere/orchestration/sharding
http://shardingsphere.apache.org/schema/shardingsphere/orchestration/sharding/sharding.xsd
http://shardingsphere.apache.org/schema/shardingsphere/orchestration/masterslave
http://shardingsphere.apache.org/schema/shardingsphere/orchestration/masterslave/master-slave.xsd">

<reg:registry-center id="regCenter" type="zookeeper" server-lists="localhost:2181" namespace="orchestration-spring-namespace-demo" overwtite="false" />
<sharding:data-source id="shardingMasterSlaveDataSource" registry-center-ref="regCenter" />
<master-slave:data-source id="masterSlaveDataSource" registry-center-ref="regCenter" />
</beans>

Configuration Item Explanation

Sharding

Namespace: http://shardingsphere.apache.org/schema/shardingsphere/sharding/sharding.xsd

Read-Write Split

Namespace: http://shardingsphere.apache.org/schema/shardingsphere/masterslave/master-slave.xsd

Data Masking

Namespace: http://shardingsphere.apache.org/schema/shardingsphere/encrypt/encrypt.xsd

Data Sharding + Orchestration

Namespace: http://shardingsphere.apache.org/schema/shardingsphere/orchestration/orchestration.xsd

Read-Write Split + Orchestration

Namespace: http://shardingsphere.apache.org/schema/shardingsphere/orchestration/orchestration.xsd

Data Masking + Orchestration

Namespace: http://shardingsphere.apache.org/schema/shardingsphere/orchestration/orchestration.xsd

Orchestration registry center

Namespace: http://shardingsphere.apache.org/schema/shardingsphere/orchestration/orchestration.xsd

--

--

Get the Medium app

A button that says 'Download on the App Store', and if clicked it will lead you to the iOS App store
A button that says 'Get it on, Google Play', and if clicked it will lead you to the Google Play store
Apache ShardingSphere

Apache ShardingSphere

Transform any DBMS in a distributed database system & enhance it with sharding, elastic scaling features & more. https://linktr.ee/ApacheShardingSphere
